Axminster Type M Mega Dovetail Jaws (100mm)

The Mega Dovetail for Hefty Bowl Blanks

The Type M (M for Mega) is the largest dovetail jaw in the SK100 system — an external dovetail of 125 mm (4.92") or an internal recess of 100 mm (3.94") at 16 mm (0.63") deep. These are the jaws to choose for turning large platters and bowls from hefty blanks where smaller dovetail sets would run out of grip.

True-circle diameters are 100 mm internal and 125 mm external; the practical range stretches from 91–117 mm (3.58"–4.61") internal and 118–134 mm (4.65"–5.28") external when you can accept some loss of perfect roundness — holding power stays strong even at the edges of the range. Stainless steel construction protects against corrosion.

Recommended for SK100 and SK114 chucks. The SK100 ships ready to mount these directly. To use them on the SK114, you'll need the SK100 Accessory Mounting Jaws (sold separately) since the SK114 ships with SK114-specific mounting jaws.

Key Features

• Dovetail Profile, Most Secure Hold: Wood is pulled tighter into the jaws as they close.
• 100 mm Recess or 125 mm Spigot: True-circle dimensions for the largest dovetail-grip work in the SK100 system.
• 16 mm Jaw Depth: Deep dovetail for hefty bowl blanks and oversized platters.
• Wide Practical Range: 91–117 mm internal, 118–134 mm external; holding power stays strong throughout.
• Fits SK100 and SK114: SK100 mounts directly; SK114 needs the SK100 Accessory Mounting Jaws (sold separately).
• British Made: Designed and manufactured by NuCo Tools in Axminster, Devon, UK.

See It In Action

In Detail

The Type M is the maximum-capacity dovetail in the SK100 jaw line — 125 mm external or 100 mm recess at 16 mm deep. If you're regularly turning hefty bowl blanks or oversized platters and want the security of a dovetail hold (versus a serrated gripper), this is the choice. For mid-size work where Type M would be overkill, see the Type A Plus Dovetail Jaws.

On the SK100 chuck, these mount directly to the supplied accessory mounting jaws. To use them on the SK114, fit the SK100 Accessory Mounting Jaws (sold separately) — the SK114 ships with its own SK114-specific mounting jaws by default.

What's Included

• 1 qty. Set of Type M Mega Dovetail Jaws (4 quadrants)
• Mounting hardware

Compatibility

• Compatible Chucks: Axminster Discovery SK100, Axminster Evolution SK114
• Mounting: SK100 ships ready to mount these directly. To use on the SK114, fit the SK100 Accessory Mounting Jaws (sold separately).

Specifications

• Package Dimensions: 8 x 14 x 5 cm (3.15" x 5.51" x 1.97")
• Package Weight: 1.35 kg (3.0 lbs)
• Country of Origin: United Kingdom
• Warranty: Backed by the Axminster product guarantee. Distributed in the U.S. by TSO Products.

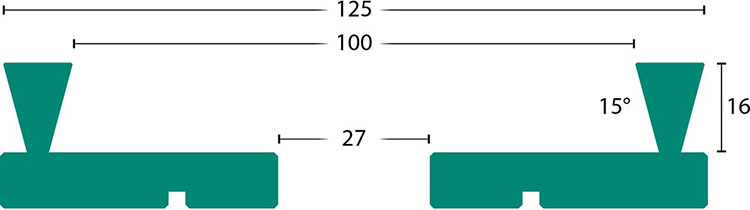

Dimensions

Figures shown in the image below are metric (mm).

Add to cart and pair with your Axminster chuck for a workholding setup that grows with the work.

Proudly British Made

Designed and manufactured by NuCo Tools in Axminster, Devon, UK. Distributed in the United States by TSO Products.
