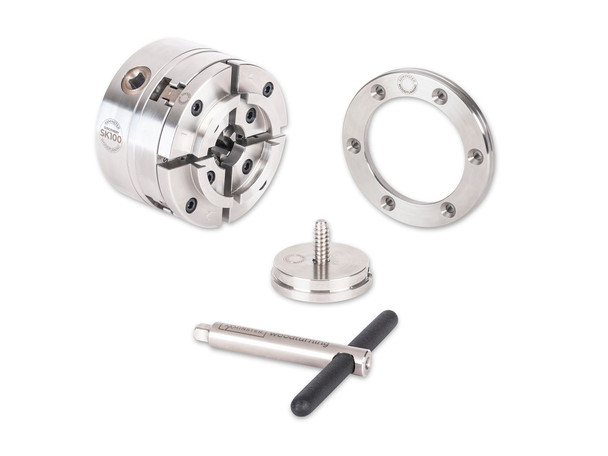

Axminster Discovery SK100 Chuck Package

Everything You Need to Start Turning, In One Box

The Discovery SK100 package puts a complete workholding setup on your lathe in one purchase. You get the chuck and enclosure, an interchangeable backplate matched to your spindle thread, Type C dovetail jaws for general bowl and end-grain work, a faceplate ring for mounting blanks fast, a screw chuck for initial bowl work, and the chuck key. Add specialty jaws as your projects demand, but this package is enough to start turning the day it arrives.

The chuck itself is solid stainless steel, machined to a tight tolerance so the jaws and lathe spindle stay in true contact through years of regular use. And because the backplate is interchangeable, the system grows with you — when your lathe changes, you swap the backplate and keep the chuck body and the jaw set you've built up around it.

Available Options

Choose your lathe thread at the top of the page. Two backplate options available in this catalog:

• 1" x 8 tpi (SKU 720947): Most common 100 mm-class lathe thread.
• 1-1/4" x 8 tpi (SKU 720948): Standard for larger production lathes.

Key Features

• Complete Starter Package: Discovery SK100 chuck, Type C dovetail jaws, faceplate ring, screw chuck, and chuck key in one box.
• Slim 100 mm Body: Compact 100 mm (3.94") diameter keeps the workpiece close to the headstock.
• Stainless Steel, No Plating: Resists corrosion from green wood and cold-shop condensation.
• Interchangeable Backplate: Swap to a different thread later; the chuck body and accessory jaws stay.
• Square-End Chuck Key: Positive engagement, easy operation, extra torque under load.
• Compatible with Existing Jaws: Fits all previous Axminster accessory jaws and dovetail jaws.
• Backed by the Axminster 5-Year Chuck Guarantee: Parts and labor covered for five years when properly maintained.
• British Made: Designed and manufactured by NuCo Tools in Axminster, Devon, UK.

Axminster Discovery Chucks

The complete Discovery SK100 starter package — everything you need to begin work on the lathe, in one box.

Includes the chuck, an interchangeable backplate matched to your lathe thread, Type C dovetail jaws, a faceplate ring, a screw chuck, and the chuck key. CNC-machined and assembled in Axminster, UK.

Buy with confidence

The Axminster 5 Year Chuck Guarantee covers parts and labor on Discovery GK88, GK100, and SK100 chucks — provided the chuck is properly maintained.

Made in Axminster, Built in Stainless

Designed, machined, and assembled in Axminster's own UK manufacturing facility. Stainless steel resists corrosion from cold-shop condensation and green-wood sap — no plating, no rust, and tolerances tight enough that jaws and spindle fit precisely every time.

What's in the Box

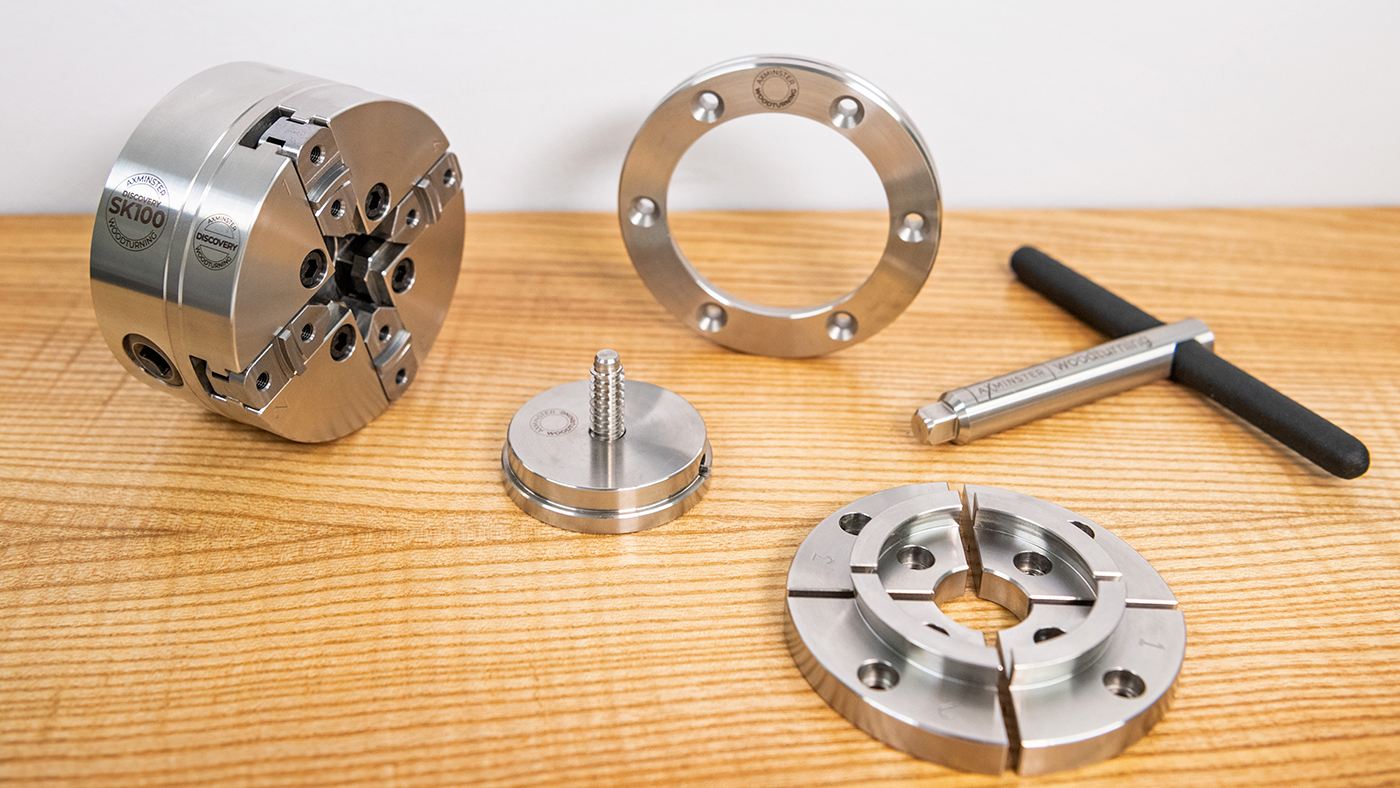

Everything you need to start turning: the Discovery SK100 chuck and enclosure, an interchangeable backplate matched to your lathe thread, Type C dovetail jaws, factory-fitted SafetyJaw© accessory mounting jaws, a faceplate ring, a screw chuck, and a square-end chuck key. The Type C jaws cover small bowls, end-grain work, boxes, and goblets; the faceplate ring mounts bowl blanks fast; the screw chuck handles initial bowl mounting while the outside form is shaped.

Interchangeable Backplate

Upgrade your lathe and keep the chuck. The stainless steel backplate swaps to suit your new spindle thread.

Square Chuck Key & SafetyJaw©

Fully enclosed body, square-end key — positive engagement with the scroll for easy operation and extra torque under load. The factory-fitted SafetyJaw© accessory mounting jaws have radiused outer edges so a brushed hand catches a smooth surface, not a sharp one.

Axminster 5 Year Chuck Guarantee

Five years of parts-and-labor coverage on every Discovery chuck. One of the most comprehensive guarantees on a workholding tool.

A Brief History of Axminster Chucks

Axminster built its first woodturner's chuck in 1984. The team chose a four-jaw scroll design from the start — three-jaw chucks aren't suited to woodturning, and the four-jaw approach opened the door to a system of interchangeable accessory jaws.

Forty years on, that accessory mounting standard still fits today's chucks. Jaws bought decades ago still work with a new Discovery chuck off the shelf.

The Discovery range is the latest in that line — refined, fully enclosed, and built for woodturners who plan to keep their kit for years.

Return to top

In Detail

The Discovery SK100 starter package puts a full workholding kit on your lathe in one purchase. The chuck features the same super-slim 100 mm (3.94") fully enclosed stainless body as the standalone SK100, plus the Type C dovetail jaws, a faceplate ring, a screw chuck, and the chuck key.

Pick your lathe thread at the top of the page. Upgrade your lathe later? Swap the backplate. The chuck body and accessory jaws stay with you.

Assembly note: chuck front to backplate — four M6 x 25 mm screws at 12 Nm (8.9 ft-lbs). Chuck to enclosure — four M4 x 40 mm screws at 3.5 Nm (2.6 ft-lbs). Two M5 set screws at 2 Nm (1.5 ft-lbs).

What's Included

• 1 x Discovery SK100 chuck body and enclosure
• 1 x Interchangeable backplate (thread to suit your selected option)
• 1 x Type C dovetail jaws
• 1 x SafetyJaw© accessory mounting jaws
• 1 x Faceplate ring
• 1 x Screw chuck
• 1 x Square-end chuck key

Compatibility

• Available Lathe Threads: 1" x 8 tpi (SKU 720947), 1-1/4" x 8 tpi (SKU 720948)
• Compatible Jaws: All previous Axminster accessory jaws and dovetail jaws

Specifications

• Package Dimensions: 30 x 21 x 10 cm (11.81" x 8.27" x 3.94")
• Package Weight: 5.42–5.53 kg (11.9–12.2 lbs) depending on selected option
• Country of Origin: United Kingdom
• Warranty: Backed by the Axminster product guarantee. Distributed in the U.S. by TSO Products.

Choose your thread size at the top of the page and add a complete Discovery SK100 setup to your bench.

Proudly British Made

Designed and manufactured by NuCo Tools in Axminster, Devon, UK. Distributed in the United States by TSO Products.
