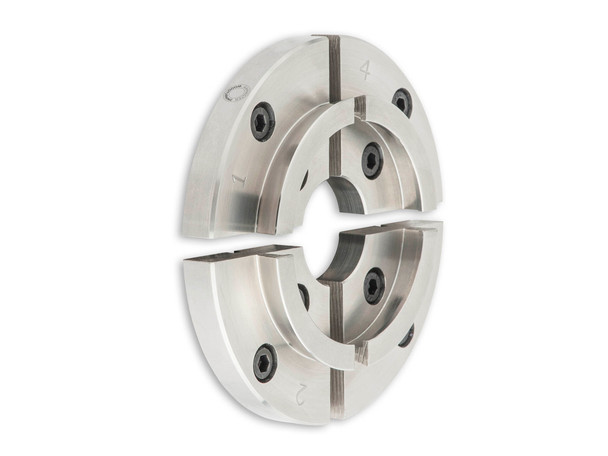

Axminster Type C Dovetail Jaws (100mm, SK100)

Versatile Hold for Bowls, Boxes, and Goblets

The Type C is one of the most versatile and popular jaw sets in the Axminster range — expanding into a 70 mm (2.76") dovetailed recess or gripping a 56 mm (2.20") spigot via the stepped internal shoulder. The dovetail profile pulls the workpiece tighter into the jaws as they close, holding small bowls, boxes, goblets, and end-grain work with the same reliable bite.

True-circle diameters are 70 mm recess or 56 mm spigot; the practical range stretches from 52–66 mm (2.05"–2.60") internal and 66–80 mm (2.60"–3.15") external when you can accept some loss of perfect roundness. Stainless steel construction protects against corrosion.

Recommended for SK100 and SK114 chucks. The SK100 ships ready to mount these directly. To use them on the SK114, you'll need the SK100 Accessory Mounting Jaws (sold separately). The Type C profile also accepts a range of direct-loading accessories, including screw chucks, faceplate rings, and Morse taper carriers.

Key Features

• Dovetail Profile, Most Secure Hold: Wood is pulled tighter into the jaws as they close.
• 70 mm Recess or 56 mm Spigot: True-circle dimensions for small bowls, boxes, and goblets.
• Wide Practical Range: 52–66 mm internal, 66–80 mm external when perfect roundness isn't critical.
• Direct-Loading Compatible: Accepts screw chucks, faceplate rings, and Morse taper carriers.
• Fits GK88, SK100, and SK114: SK100 mounts directly; SK114 needs the SK100 Accessory Mounting Jaws (sold separately).
• British Made: Designed and manufactured by Axminster Tools in Axminster, Devon, UK.

See It In Action

In Detail

The Type C is the workhorse profile across the Axminster range. If you turn small-to-mid-size bowls, boxes, or goblets, this set lives on the chuck most of the time. The stepped internal shoulder allows internal gripping on a spigot, which is what makes Type C particularly useful for end-grain work like boxes and goblets where you need a positive hold without an external recess.

On the SK100 chuck, these mount directly to the supplied accessory mounting jaws. To use them on the SK114, fit the SK100 Accessory Mounting Jaws (sold separately) — or use the Type C Dovetail Jaws (114 mm, SK114) instead, which mount directly on the SK114 without an adapter.

What's Included

• 1 qty. Set of Type C Dovetail Jaws (4 quadrants)
• Mounting hardware

Compatibility

• Compatible Chucks: Axminster Discovery SK100, Axminster Evolution SK114
• Mounting: SK100 ships ready to mount these directly. To use on the SK114, fit the SK100 Accessory Mounting Jaws (sold separately).

Specifications

• Package Dimensions: 10 x 7 x 3 cm (3.94" x 2.76" x 1.18")
• Package Weight: 0.6 kg (1.3 lbs)
• Country of Origin: United Kingdom
• Warranty: Backed by the Axminster product guarantee. Distributed in the U.S. by TSO Products.

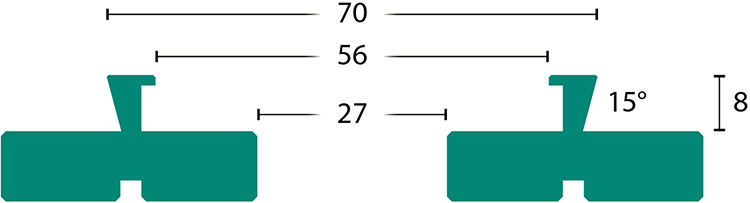

Dimensions

Figures shown in the image below are metric (mm).

Add to cart and pair with your Axminster chuck for a workholding setup that grows with the work.

Proudly British Made

Designed and manufactured by Axminster Tools in Axminster, Devon, UK. Distributed in the United States by TSO Products.
