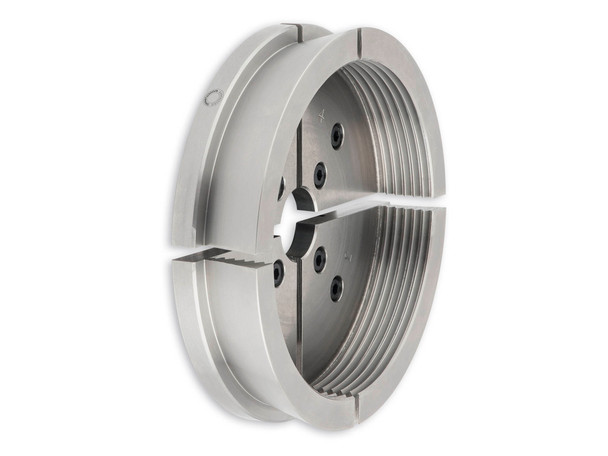

Axminster Colossus Gripper Jaws (150mm)

When the Blank Outgrows Your Standard Jaws

The Colossus jaws are the largest gripper profile Axminster makes, expanding into a 150 mm (5.91") dovetailed recess or compressing onto a 125 mm (4.92") spigot. That's the kind of capacity you reach for when the workpiece is an unseasoned log destined for a hollow form, a salad bowl big enough for the whole family, or a platter that doesn't fit anything else in your jaw collection.

Built on the proven design of the Type G Gripper Jaws but scaled up for serious bowl and hollow-form work, the Colossus offers a wide gripping range that forgives imprecise tenon or recess cutting — useful when the blank's diameter is closer to a guess than a measurement.

Recommended for SK100 and SK114 chucks — bolts directly to the accessory mounting jaws supplied with each chuck. Made from stainless steel to protect against corrosion.

Key Features

• 150 mm Gripper Capacity: Largest gripper profile in the Axminster range — designed for big bowl blanks and oversized platters.
• Aggressive Serrated Grip: Slip-free hold under heavy stock removal.
• Direct Fit on SK114: Bolts to the SK114 accessory mounting jaws.
• Machined in Axminster, UK: Tight tolerances, hardened serrations, clean machining.
• British Made: Designed and manufactured by NuCo Tools in Axminster, Devon, UK.

See It In Action

In Detail

When the work outgrows your chuck's standard jaw range, the Colossus jaws extend capacity to 150 mm (5.91"). At that size, dovetail finesse takes a back seat to grip security — the serrated profile bites and holds.

Bolts directly to the SK100 or SK114 via the accessory mounting jaws each chuck ships with.

What's Included

• 1 qty. Set of Colossus gripper jaws, 150 mm (4 quadrants)
• Mounting hardware

Compatibility

• Compatible Chucks: Axminster Discovery SK100, Axminster Evolution SK114
• Mounting: Each quadrant fastens to the accessory mounting jaws supplied with each chuck via two screws. No adapter required.

Specifications

• Package Dimensions: 20 x 14 x 4.5 cm (7.87" x 5.51" x 1.77")
• Package Weight: 1.92 kg (4.2 lbs)
• Country of Origin: United Kingdom
• Warranty: Backed by the Axminster product guarantee. Distributed in the U.S. by TSO Products.

Dimensions

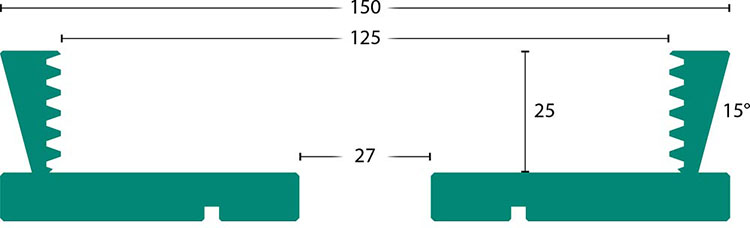

Figures shown in the image below are metric (mm).

Add to cart and pair with your Axminster chuck for a workholding setup that grows with the work.

Proudly British Made

Designed and manufactured by NuCo Tools in Axminster, Devon, UK. Distributed in the United States by TSO Products.
