TSO Products LLC.

GRS-16 PE Parallel Edge Guide Rail Square

$179.95

GRS-16 PE Parallel Edge Guide Rail Square

$179.95
SKU:
61-230
Weight:
4.00 LBS
Availability:
The GRS-16 PE is in production and in stock. Order now and this will ship in about ONE business day!
Shipping:
Calculated at checkout
Quantity:
Share

Product Description

Worldwide shipping available to all destinations outside the United States!

Introducing the Newest GRS-16 PE

Precision guide rail square for FESTOOL®, MAKITA® & TRITON® track saw guide rails

The GRS-16 family is the easiest, fastest and most accurate way to square your guide rail.

Introducing the newest version of the best-selling guide rail square on the market: the GRS-16 PE. Like its sibling GRS-16, the GRS-16 PE is designed to make it much faster to achieve dead square cuts with your FESTOOL, MAKITA or TRITON track saw—but adds a second "parallel edge" to permit squaring against the front and back of your workpiece.

The Original Guide Rail Square, Refined

Thanks to feedback from the TSO user community, the GRS-16 PE embodies a number of requested features and refinements:

  • Lighter than its predecessor despite being CNC machined from 25% thicker aluminum, with a mating vertical edge that now perfectly matches the height of your guide rail extrusion for maximum support and engagement
  • Now fits in a Systainer—see our new Dual FoamPac Systainer Insert
  • Latch hook now features a resilient coating to grasp and protect the edge of your guide rail
  • Reshaped T feature lead-in makes it even easier to install onto your guide rail
  • Additional accessory mounting provisions included—see our new Angle Accessory and stay tuned for more exciting new products building off the GRS-16 platform
  • Adjustments to key tolerances to better accommodate production variances observed in guide rail manufacturing
  • Fasteners used on all TSO brand tools are now metric for worldwide availability
  • New, fully recyclable all-corrugated white packaging

Simple, Automatic Accuracy

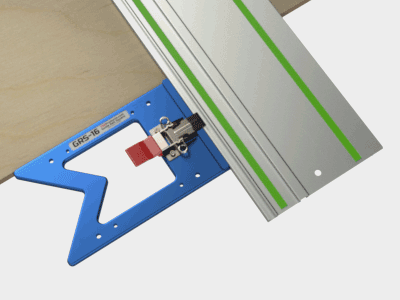

Before the GRS-16 family, accessories for squaring up your track saw guide rail relied on the loose-tolerance T-slot found on just about every guide rail. To overcome this inherent inaccuracy, you had to rely on a separate reference square, plus a combination of loose parts like T-bars, hex bolts, knobs or wingnuts. No longer! The patent-pending GRS-16 PE is completely self-contained and self-aligning, thanks to an innovative, high strength integral draw latch mechanism. Simply slide the GRS-16 PE onto your guide rail, lock the draw latch, and you're done. Five seconds to square.

Accurate cuts with your track saw often require using a screw clamp or quick clamp. For this reason, we've designed notches in both reference edges of the GRS-16 PE to accommodate popular clamps like the Festool Screw Clamp or Quick Clamp.

Built for a Lifetime of Service (or Longer)

The GRS-16 PE is precision CNC machined from a single piece of 5/8" (15 mm) thick 6061-T6 aluminum and then anodized for a non-marring, high durability finish. The high-strength draw latch is built from stainless steel—to resist rust and pitting over time—and features a resilient, grippy, non-marring coating on the latch hook. Despite its high clamping strength, a comfort coating on the latch handle makes it easy to generate the leverage necessary to engage, release or reposition the square along your length of track. The GRS-16 is made in the United States, and comes with our lifetime warranty.

So Which Tool is Right for You?

If you need the ability to reference off the front and back edge of your workpiece, select the GRS-16 PE (the product you see on this page). If you want the absolute smallest and lightest form factor and anticipate using the square for conventional cuts referencing the front edge of your workpiece, choose the GRS-16. Can't decide? Check out the Combination Set for the best of both worlds:

  • Allows you to square both ends of longer rails for greatest accuracy
  • Keep one in the truck and one in the shop
  • Special savings when purchased together as a Combination Set

Technical Details

  • Dimensions: 15.2 x 6.0 x 1.4 inches (386 x 152 x 36 mm)
  • Weight: 1.9 lbs (862 g)
  • Material: 6061-T6 aluminum, anodized, 5/8 in (15 mm) thick
  • Compatible Guide Rails: FESTOOL, MAKITA and TRITON (not compatible with BOSCH or DEWALT tracks)
  • Clamping Mechanism: Over center draw latch (304 stainless steel) with compensating spring; secured with M4x0.7-10 stainless steel socket head screws

Videos


Quick video walkthrough of the original GRS-16 PE.


Special thanks to Eric at The Poplar Shop for his unexpected video review of the original GRS-16!

Guide Rail Square Comparison Table

  GRS-16
Guide Rail Square
GRS-16 PE
Guide Rail Square
GRS-16 & GRS-16 PE
Combination Set
  GRS-16 GRS-16 PE GRS-16 & GRS-16 PE Combination Set
Best for… Squaring your guide rail by referencing off the front edge of your workpiece Squaring your guide rail by referencing off either the front or back edge of your workpiece Squaring your guide rail by referencing both the front and back edge of your workpiece at the same time; ideal for longer guide rails
Price $159.95 $179.95 $319.95
Optional Accessories FoamPack Storage Insert for SYS-1 T-LOC Systainer
Angle Accessory
FoamPack Storage Insert for SYS-1 T-LOC Systainer
Angle Accessory
FoamPack Storage Insert for SYS-1 T-LOC Systainer
Angle Accessory

Got a suggestion to make this page even better? Your feedback and suggestions are always welcome!

The TSO Products GRS-16 is Patent Pending.
Product specs and design are subject to change without notice as we continue to improve our products.
FESTOOL is a Trademark of FESTOOL Tool Technic Tanos.
GRS-16™ TSO Products, LLC.
All Rights Reserved © 2017
