GRS-16: The Original Guide Rail Square
Patented precision guide rail square for FESTOOL®, MAKITA®, POWERTEC® & TRITON® track saw guide rails
Introducing the newest version of the best-selling guide rail square on the market: the GRS-16. Incorporating a number of user-driven enhancements, the TSO GRS-16 guide rail square is still the fastest, easiest and most accurate way to square cuts with your FESTOOL, MAKITA, POWERTEC and TRITON track saw guide rails.
Featuring New Enhancements
Thanks to feedback from the TSO user community, the GRS-16 guide rail square now embodies a number of requested features and refinements:
- Lighter than its predecessor despite being CNC machined from 25% thicker aluminum, with a mating vertical edge that now perfectly matches the height of your guide rail extrusion for maximum support and engagement
- Latch hook now features a resilient coating to grasp and protect the edge of your guide rail
- Reshaped T feature lead-in makes it even easier to install onto your guide rail
- Accessory mounting holes tapped for M6 threads—enables connection to the TSO Parallel Guide System and Angle Accessory
- Adjustments to key tolerances to better accommodate production variances observed in guide rail manufacturing
- Available Dual FoamPac Systainer Insert fits both the GRS-16 and GRS-16 PE in a single Systainer3 M 112 and previous-generation T-LOC Systainers (check out our limited edition TSO Systainer3 M 112)
- Fasteners used on all TSO brand tools are now metric for worldwide availability
- New, fully recyclable all-corrugated white packaging
See How It Works
Simple, Automatic Accuracy
Before the GRS-16, accessories for squaring up your track saw guide rail relied on the loose-tolerance T-slot found on just about every guide rail. To overcome this inherent inaccuracy, you had to rely on a separate reference square, plus a combination of loose parts like T-bars, hex bolts, knobs or wingnuts. No longer! The patented GRS-16 is completely self-contained and self-aligning, thanks to an innovative, high strength integral draw latch mechanism. Simply slide the GRS-16 onto your guide rail, lock the draw latch, and you're done. Five seconds to square.
Accurate cuts with your track saw often require using a screw or quick clamp. For this reason, we've designed notches in both reference edges of the GRS-16 to accommodate popular clamps like the Festool Screw Clamp or Quick Clamp.
Built for a Lifetime of Service (or Longer)
The GRS-16 is precision CNC machined from a single piece of 5/8" (15 mm) thick 6061-T6 aluminum and then anodized for a non-marring, high durability finish. The high-strength draw latch is built from stainless steel—to resist rust and pitting over time. Despite its high clamping strength, a comfort coating on the latch handle makes it easy to generate the leverage necessary to engage, release or reposition the square along your length of track. The GRS-16 guide rail square is made in the United States, and comes with our five-year warranty.
So Which Tool is Right for You?
If you want the absolute smallest and lightest form factor and anticipate using the square for conventional cuts referencing the front edge of your workpiece, choose the GRS-16 (the product you see on this page). If you need the ability to reference off the front and back edge of your workpiece, select the GRS-16 PE:
- Allows you to square both ends of longer rails for greatest accuracy
- Keep one in the truck and one in the shop
A System Approach
The GRS-16 is much more than a guide rail square; in fact, it's the foundation of a broader system of TSO Products designed for interoperability. Case in point: the TSO Parallel Guide System utilizes the M6 accessory mounting holes on the GRS-16 for attachment. Once connected, you can repeatedly square and rip multiple workpieces in a single operation.
- Dimensions: 15.2 x 6.0 x 1.4 inches (385 x 152 x 36 mm)
- Weight: 1.7 lbs (772 g)
- Material: 6061-T6 aluminum, anodized, 5/8 in (15 mm) thick
- Compatible Guide Rails (Both): FESTOOL, MAKITA, POWERTEC and TRITON (not compatible with FESTOOL HK 55 Carpentry Saws including the FSK 250, FSK 420 and FSK 670; not compatible with BOSCH or DEWALT tracks)
- Clamping Mechanism: Over center draw latch (304 stainless steel) with compensating spring; secured with M4x0.7-10 stainless steel socket head screws
- Accessory Mounting Holes: Tapped for M6 threads for compatibility with TSO Parallel Guide System and Angle Accessory
Download the GRS-16 series User Guide
Access the User Guide PDF on our Support page.
Quick video walkthrough of the original GRS-16.
Special thanks to Eric at The Poplar Shop for his unexpected video review of the original GRS-16!
Guide Rail Square Comparison Table
Guide Rail Square
|GRS-16 PE |
Guide Rail Square
|Best for…||Squaring your guide rail by referencing off the front edge of your workpiece||Squaring your guide rail by referencing off either the front or back edge of your workpiece|
|Optional Add-ons||TSO Parallel Guide System |

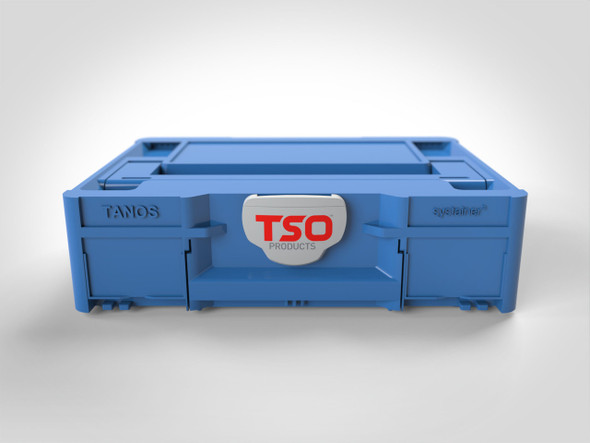

TSO Limited Edition Systainer³ M 112
FoamPack Storage Insert for T-LOC Systainer & Systainer³ M 112
Got an idea to make this page even better? Your feedback and suggestions are always welcome!
Other DetailsTSO brand products are guaranteed for five years from date of sale against defects in materials or workmanship. Normal wear and tear and accidental damage are not covered. For any product determined to have a defect covered by this warranty, TSO Products will repair or, at its option, replace with current comparable product. Warranty requests require an RMA (return authorization number) prior to any return. Request an RMA number by contacting TSO Customer Service (email@example.com).
