Axminster Eccentric Spiraling Chuck

Off-Center Turning Without the Workaround

Shift the turning axis on demand. The Eccentric Spiraling Chuck mounts on Type C Dovetail Jaws and lets you produce candlesticks, goblets, jewelry, and box designs that simply aren't possible with the work centered on the spindle axis.

CNC-machined in Axminster, UK. Lightweight, intuitive, and designed by Tony Witham — full instructions in the box.

Key Features

• Three-Plate Eccentric Design: Index plate, pivot plate, and dovetail ring — insert the offset screw, attach, align the pins, and you're set up.
• Fits Type C Dovetail Jaws: Mounts directly on Axminster's 100 mm Type C Dovetail Jaws and 114 mm Type C Dovetail Jaws — or any chuck running 8 mm (0.31") deep, 15° dovetail jaws that adjust to 70 mm (2.76").
• Designs You Can't Get On-Center: Candlesticks, goblets, jewelry, box designs, spiraled stems — all unlocked by the eccentric chuck.
• CNC-Machined in Axminster: Built to the same standard as the chucks it mates to.
• Designer Instructions Included: Full setup notes from Tony Witham in the box.
• British Made: Designed and manufactured by NuCo Tools in Axminster, Devon, UK.

Create Eccentric Pieces

Off-center turning — without the workaround. The Axminster Eccentric Spiraling Chuck shifts the turning axis of your workpiece so you can produce candlesticks, goblets, jewelry, and box designs that simply aren't possible on-center.

Lightweight, intuitive, and built to fit any chuck running 8 mm (0.31") deep, 15° dovetail jaws that adjust to 70 mm (2.76"), including the Axminster Type C jaws.

Easy to Use

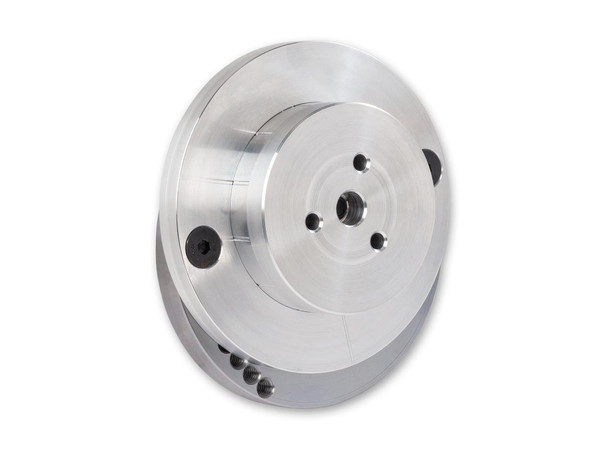

Three components: an index plate, a pivot plate, and a dovetail ring. Insert the offset screw at your chosen position, attach the index plate, align the index pins, and you're set up to turn.

Pairs with Type C Dovetail Jaws (100 mm / 3.94")

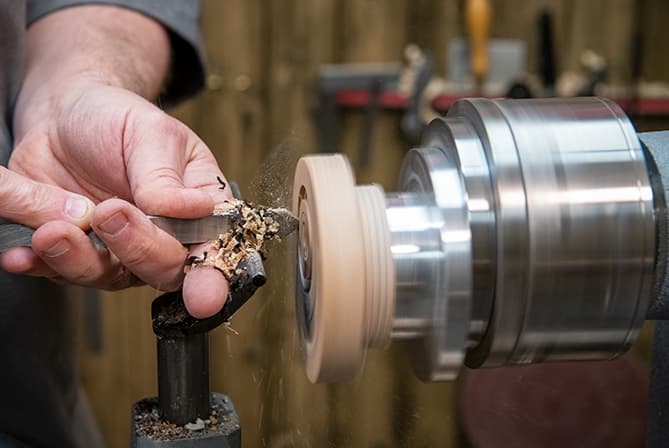

Mounts directly on Axminster's 100 mm Type C Dovetail Jaws — one of the most versatile jaw sets in the range, ideal for small bowls and end-grain work that pairs naturally with off-center designs.

Designs You Can't Get On-Center

Candlesticks, goblets, jewelry, decorative boxes, spiraled stems — the eccentric chuck opens up a class of work that isn't possible holding the blank on-axis.

British Design and Engineering

Part of the Axminster Woodturning range — CNC-machined in Axminster, UK, drawing on 35+ years of chuck design and production experience.

Return to top

In Detail

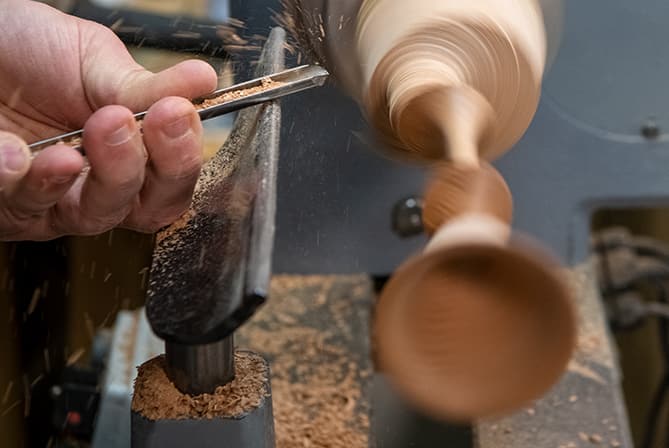

Eccentric turning is a popular discipline in the woodturning community for a reason — it opens up a class of work that simply can't be produced on-axis. The Eccentric Spiralling Chuck makes the technique accessible without a custom rig.

The chuck locates onto any chuck with dovetail jaws 8 mm (0.31") deep, 15°, that adjust to 70 mm (2.76") — including Axminster's 100 mm Type C Dovetail Jaws and 114 mm Type C Dovetail Jaws and many other brands.

Full instructions from the original designer, Tony Witham, are included.

What's Included

• 1 qty. Eccentric Spiraling Chuck (index plate, pivot plate, dovetail ring)
• 1 qty. Offset screw and hardware
• 1 qty. Instruction sheet

Compatibility

• Compatible Jaws: Any chuck running 8 mm (0.31") deep, 15° dovetail jaws that adjust to 70 mm (2.76")
• Tested Jaw Sets: 100 mm Type C Dovetail Jaws, 114 mm Type C Dovetail Jaws, and many third-party equivalents

Specifications

• Package Dimensions: 4 x 10 x 10 cm (1.57" x 3.94" x 3.94")
• Package Weight: 0.72 kg (1.6 lbs)
• Country of Origin: United Kingdom
• Warranty: Backed by the Axminster product guarantee. Distributed in the U.S. by TSO Products.

Videos

Add the Eccentric Spiraling Chuck and start turning shapes you can't make on-axis.

Proudly British Made

Designed and manufactured by Nuco Tools in Axminster, Devon, UK. Distributed in the United States by TSO Products.
