  • Close-up of the components included in the TSO Adapter Kit.

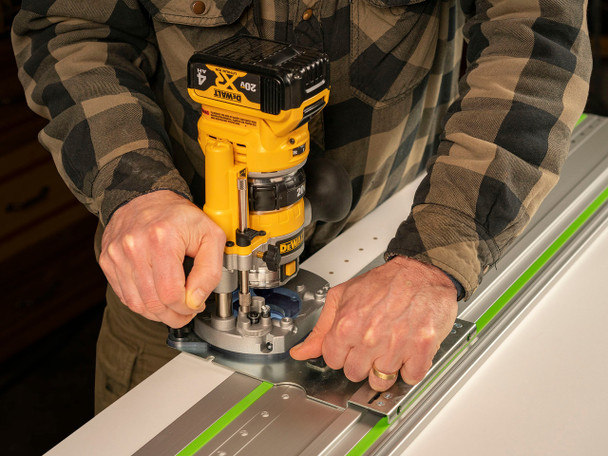

  • Turn your DeWalt compact router into the ultimate 32mm hole boring machine.
  • Utilize the Festool LR 32 System with a more cost-effective router.
  • LR 32 Guide Plate Adapter Kit for Dewalt Compact Routers
  • The TSO Adapter Baseplate sits between the router and Festool guide plate.
  • Insert the magnetic TSO Pivot Block to route continuous dados and rebates.
  • Insert the magnetic TSO Pivot Block to route continuous dados and rebates.
  • An excellent alternative to Festool's router guide stops for routing dados and rebates.
  • LR 32 Guide Plate Adapter Kit for Dewalt Compact Routers
  • The TSO Adapter Kit includes (A) Pivot Block, (B) Baseplate, and (C) Comfort Grip Knobs.
  • TSO Adapter Baseplate and Festool guide plate installed and ready for use.
  • DeWalt compact router and plunge base shown with TSO Baseplate and Festool guide plate.
  • Close-up of the TSO Adapter Baseplate installed on the bottom of the DeWalt compact router plunge base.
  • TSO Adapter Baseplate installed on the bottom of the DeWalt compact router plunge base.

    • LR 32 Guide Plate Adapter Kit for Dewalt Compact Routers

    Now: $39.95
    (No reviews yet) Write a Review
    SKU:
    61-499
    Weight:
    1.00 LBS
    Width:
    7.00 (in)
    Height:
    5.00 (in)
    Depth:
    2.00 (in)

    Product Description

    This product adapts DeWalt compact routers for use with Festool's LR 32 Hole Drilling System. To make use of this adapter kit, you will need a compatible DeWalt compact router with plunge base, an 8mm collet, the Festool LR 32-SYS Hole Drilling Set (584100), and a Festool LR 32 guide rail.

    Turn your trim router into a 32mm hole boring powerhouse

    Festool’s LR 32 Hole Drilling System is one of the best ways to efficiently build cabinets using the standardized European frameless 32mm system, particularly when boring shelf pin holes in casework. Originally designed to utilize Festool OF 1400 or OF 1010 routers, this Adapter Kit makes it possible to use Festool’s LR 32 system with DeWalt’s popular compact routers (DCW600 or DCW611 with DNP612 plunge base).

    Utilize the Festool LR 32 system without purchasing or reconfiguring a Festool router every time you need to bore holes in cabinetry. Instead, you can dedicate a lower cost DeWalt trim router for a more practical setup that’s ready to go when you need it.

    More Than Just Boring Holes: Grooves, Dados, & Rabbets, Too

    TSO Pivot Block being placed underneath LR 32 Guide Plate latch
    The TSO Pivot Block features an integrated magnet and is placed underneath the lever on the LR 32 guide plate to enable routing of continuous dados and rabbets.

    With the included Pivot Block, Festool’s LR 32 System can also be used to route continuous grooves, dados and rabbets—perfect for accommodating casework backing or drawer bottoms. The Pivot Block features an integrated magnet and attaches underneath the guide plate lever, keeping the pin temporarily raised such that it will not engage the holes in the guide rail. This is a great alternative to other router-to-guide-rail attachment methods such as Festool's own guide stops, especially if you don't need the micro-adjust feature. When you want to switch back to 32mm hole boring, simply remove the TSO Pivot Block from underneath the lever, self-store the block using its magnetic base anywhere on the LR 32 Guide Plate, and re-install your 5mm boring bit.

    What's Included

    • 1 qty. Adapter Baseplate – CNC machined and laser engraved from ¼" thick polycarbonate; replaces the original injection molded plate on the DeWalt DNP612 Plunge Base
    • 2 qty. M6 Comfort Grip Knobs – For securing the router to Festool’s LR 32 metal guide plate
    • 1 qty. Pivot Block – Optionally prevents the guide plate pin from engaging into the guide rail holes, for routing slots and dados

    What's Required?

    To make use of this adapter kit, you will need:

    Documentation

    Got an idea to make this page even better? Your feedback and suggestions are always welcome!

    Other Details

    TSO brand products are guaranteed for five years from date of sale against defects in materials or workmanship. Normal wear and tear and accidental damage are not covered. For any product determined to have a defect covered by this warranty, TSO Products will repair or, at its option, replace with current comparable product. Warranty requests require an RMA (return authorization number) prior to any return. Request an RMA number by contacting TSO Customer Service (info@tsoproducts.com).
