TSO Products

Assembly Angle Set for TSO Precision Triangles

(2 reviews) Write a Review
SKU:
61-585
NEW

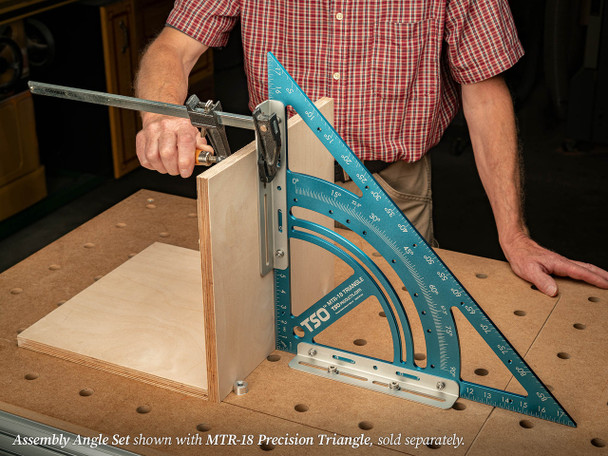

  • Assembly Angle Set shown with MTR-18 Precision Triangle (sold separately).
  • What's included in the Assembly Angle Set.
  • Assembly Angle Set shown with MTR-18 Precision Triangle (sold separately).
  • Assembly Angle Set shown with MTR-18 Precision Triangle (sold separately).
  • Assembly Angle Set shown with MTR-18 Precision Triangle (sold separately).
  • Assembly Angle Set shown with MTR-18 Precision Triangle (sold separately).
  • Assembly Angle Set shown with MTR-X Precision Triangle (sold separately).
  • Assembly Angle Set shown with MTR-X Precision Triangle (sold separately).
  • Assembly Angle Set for TSO Precision Triangles
  • Assembly Angle Set for TSO Precision Triangles
  • Proudly made in the USA.
$79.95
Frequently bought together:

Description

Easy & Precise Vertical Panel Assembly & Glue-Up

Aligning and clamping panels vertically during glue-up can be tricky, especially when you're rushing as the glue is drying. Additionally, screw fastening can often cause panel misalignment, especially frustrating if your project requires precise tolerances and a tight fit-up.

Designed for precision work, the TSO Assembly Angle Set provides square reference edges for perfect panel alignment during glue-ups and assembly. Compatible with MFT-style hole patterns, it allows quick vertical mounting of TSO triangles (MTR, PTR, MTR-X) for stable, repeatable support. Once the Assembly Angles have been attached to your triangle, simply insert it into a 20x96mm hole patterned worktop with the included Smart Connect Dogs, and clamp the vertical Assembly Angle to your upright panel. The TSO Assembly Angle Set can also double as adjustable work stops, with a total of four Smart Connect Dogs allowing a wide variety of creative fixturing configurations.

Key Features

  • Achieve precise and perfectly vertical panel alignment during assembly operations
  • Prevent missalignment caused by fastening forces
  • Works on any MFT-style worktop with a 20x96mm hole pattern
  • Requires a TSO PTR-18, MTR-18 or MTR-X Precision Triangle.
  • Add a set of SpeedKnobs and clamp from underneath the table for extra rigidity
  • Doubles as a pair of adjustable work stops

Included

  • 2 qty. Adjustable Angles, 10"
  • 4 qty. M6x1.0 Socket Head Cap Screws
  • 4 qty. M6 Washers
  • 4 qty. Smart Connect Bench Dogs, 17mm
  • 4 qty. M8x1.25 Socket Head Cap Screws
  • 4 qty. M8 Washers
  • 1 qty. 5mm Hex Key

Proudly Made in the USA

Proudly Made in the USA
