Description

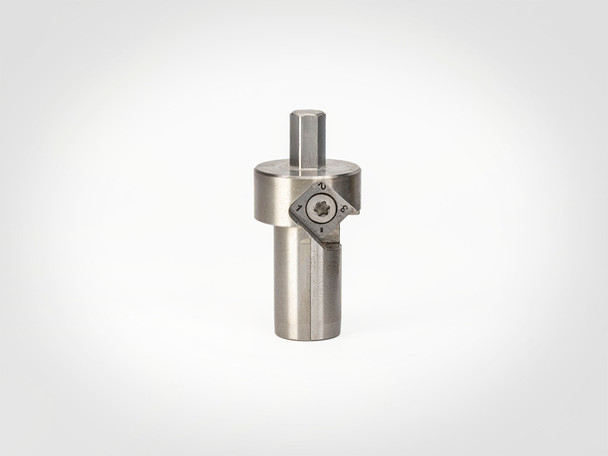

Two Tools in One: Power Reamer & Chamfer
The Parf Guide System relies on the fine tolerance fit between the dog holes and the dogs—neither too tight or too loose. Changes in humidity can make it difficult to insert or remove 20mm dogs. Machined from stainless steel, this UJK Combined Chamfer & Reamer Tool does two jobs at once.
This 2-in-1 tool featuring a 10mm hexagonal shank can be used in your favorite cordless drill chuck (use at slow speed). The reamer portion has a gentle lead in and four cutting flutes to ream the holes to a precise size. With this woodworking multi-tool, your 20mm dogs will fit snugly without wobble yet can still be removed without difficulty.
After the reamer, the chamfer tool comes into action. It cuts a neat, shallow chamfer around the top of the dog hole. This chamfer allows full use of our Power-Loc or Smart Connect Bench Connecting Dogs, as well as Parf Super Dogs or any other 20mm dog that utilizes a lip. In addition, by removing the sharp edge around the hole, it prevents damage from repeated insertion of dogs, clamps and other accessories. The chamfer features a solid tungsten carbide cutter with four adjustable cutting sides. If it ever gets dull, which is unlikely, you can always rotate the carbide insert to another side.
Note: This cutter works best in MDF, HDF or plywood with a melamine facing. We do not recommended it for hardwood veneer plywood, where the high cutting speed of a traditional woodworking router and chamfer bit with pilot bearing will provide a superior result.
Key Features
- Stainless steel, 4-flute reamer with TC chamfer cutter
- Restores tolerance of tight dog holes in bench tops
- Chamfer allows full use of our Power-Loc or Smart Connect Bench Connecting Dogs, as well as UJK Parf Super Dogs
- 10mm hexagonal shanks for a secure grip
- Chamfer features a solid tungsten carbide cutter
Videos
- Using the UJK Parf Guide System - Part 1, by Peter Parfitt
- Using the UJK Parf Guide System - Part 2, by Peter Parfitt
- How to Drill a 20mm Worktop with the PGS, by Dave Stanton
- How to Make a Speedy Tracksaw Cutting Station, by Peter Parfitt
Documentation
Warranty & Returns
31 Reviews
-
UJK COMBINED CHAMFER & REAMER TOOL
This is a fabulous tool. After cutting an MFT style top on my CNC with 96 holes set to 20 mm this tool helped me size up the holes (which came out 19.94 mm) relatively effortlessly - a great tool.
-
Excellent Quality
As advertised. Exceptional quality. Solid.
-
Chamfer and Reamer tool
This is a really useful device as it combines reaming and chamfering. I have found that MDF tops from different suppliers are inconsistent and some have been unuseable as delivered. If you seal the top to protect the surface then you will need this afterwards but the holes in MDF tops seem to contract over time even without sealing ,requiring reaming for continued use. You will need some care and a chunky electric drill if the holes are very undersized but an invaluable tool for MFT users
-
Love UJk Products
As with all UJK products, it’s perfect. I bought to accompany the UJK Parf Guide System, which works unbelievably well too. After making the grid, I put shellac over top and inevitably it got down into the dogholes. Clearing out the holes, as well as adding the chamfer allows accessories to work the way they are supposed. I can’t say enough about the IJK products and this will not be the last product I purchase from them.
-
Combination chamfer/reamer
Excellent, easy to use with the drill
