Extended Rip Fence for Festool CSC SYS 50 EB Cordless Table Saw

Expand Your Rip Capacity. Boost Your Control.

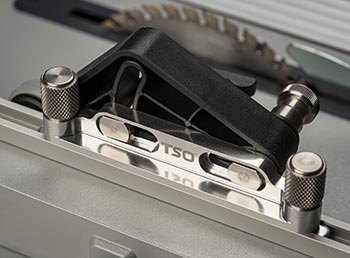

Support brackets mount to the top of the TSO Extended Rip Fence, providing a platform for attaching JessEm Clear-Cut FLEX Stock Guides or featherboards like the Mini-Hedgehog.

The Festool CSC SYS 50 is a marvel of portability and precision—but even the best tools have limits. When it comes to making long, accurate rip cuts in flooring, trim, or other thin and long materials, its compact size can work against you. That’s where the TSO Extended Rip Fence comes in.

The TSO Extended Rip Fence is a 1,000mm (39-3/8”) long, precision-machined aluminum fence that replaces the factory rip fence on the CSC SYS 50, which measures just 500mm in length. That’s double the length—providing a dramatic improvement in workpiece support and guiding accuracy.

Simple Swap, Big Difference

Installing the Extended Rip Fence is as easy as it gets: just loosen the factory rip fence, slide it off, and replace it with the TSO Extended Rip Fence. You’ll instantly gain the added support and guidance needed for longer rips—no modification to your saw required.

Extra Support Where You Need It

Included with the Extended Rip Fence are two TSO Stock Support Brackets that extend both in front of and behind the saw’s table. These provide critical stabilization for longer or flexible materials like baseboard, casing, or LVP flooring—helping prevent bowing, chatter, and material deflection mid-cut.

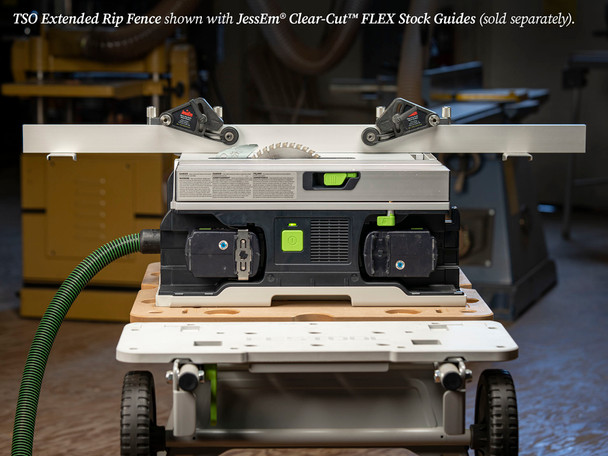

Ready for JessEm FLEX Guides—and More

To take your rip cuts to the next level, we include a pair of Mounting Adapter Brackets that accept JessEm Clear-Cut FLEX Stock Guides, Mini-Hedgehog Featherboards, or your own custom jigs. Use standard M6 or ¼-20 hardware to attach featherboards, sacrificial fences, or other fixtures that make your workflow more efficient.

When mounted with the Jess-Em Stock Guides, the system accommodates materials up to ~1-15/16" (50mm) thick—just a hair above the CSC SYS 50’s maximum 1-7/8" (47.5mm) cut depth—so there’s no need to remove the guides between cuts.

Unlock the full potential of your CSC SYS 50 with the TSO Extended Rip Fence—because we can always use a little bit more support.

Key Features

• Double the Fence Length: Long, 1,000mm (39-3/8”) aluminum extrusion—twice as long as the stock CSC SYS 50 fence.
• Infeed & Outfeed Supports Included: Two TSO Fence Stops/Supports add stability for long workpieces.
• Compatible with Accessories: Attach Jess-Em Clear Cut FLEX Stock Guides and Microjig Mini-Hedgehogs.
• Customize It: Mount custom accessories, jig, or auxiliary fences using standard M6 or ¼-20 hardware.
• Tool-Free Installation: Slides right onto the Festool fence bracket with a quick, tool-free install.

Note: Jess-Em Clear Cut FLEX Guides and Microjig Mini-Hedgehogs not included. Available for separate purchase.

What’s Included in the Box

• 1 qty. Extended Rip Fence
• 2 qty. Material Support Brackets/Stops
• 2 qty. Mounting Adapter Brackets for Accessories

Documentation

• TSO Extended Rip Fence Assembly Guide (PDF)

Specifications

• Fence Material: 6063-T5 aluminum
• Fence Finish: Clear anodized with acid etched surface
• Fence Length: 1,000 mm (39-3/8”)
