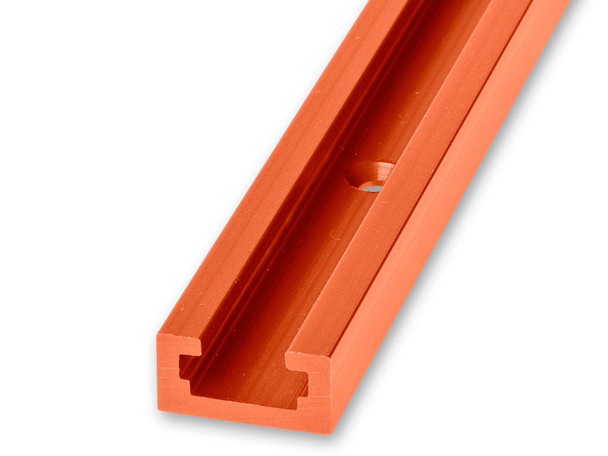

UJK T-Track

Build Custom Worktops & Jigs

This multifunctional section of aluminum T-Track can be utilized for a wide range of work holding jigs and worktops. They come pre-drilled with countersunk holes for easy installation, and each track is anodized to help with wear resistance.

The UJK Universal T-Track is compatible with more clamps and hardware but requires a deeper dado when compared to the shallower UJK T-Track.

Key Features

• Multifunctional: The aluminum T-Track can be used for a wide range of work holding jigs, clamps, sleds, and worktops.
• Durable: Anodized for wear resistance, ensuring a longer lifespan in a workshop environment.
• Compatible: System approach designed to accommodate UJK Hold Down Clamps, UJK Cam Lock Hold Downs, and Axminster Quick Action Clamps.

More Details

• T-Bolt Compatibility: M6, M8, 1/4" and 5/16"
• Hex Bolt Compatibility: M6 and 1/4"
• Available in 610 mm (24") or 915 mm (36") lengths
• External Profile: 19 mm (3/4") wide, 9.5 mm (3/8") deep
• Slot Opening: 9 mm
• Internal Slot Depth: 7 mm
• Internal Slot Max. Width: 14 mm
• Holes spaced 4" on center and 2" from each end
• Mounting screws not included (#10 Flat head screws recommended)
